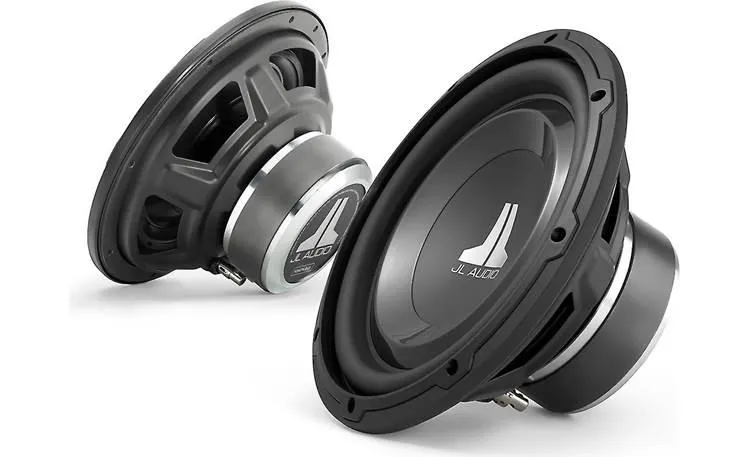

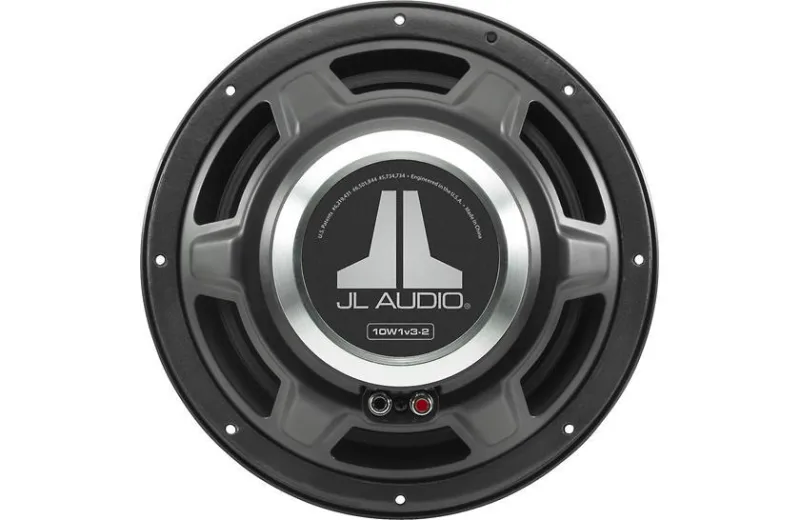

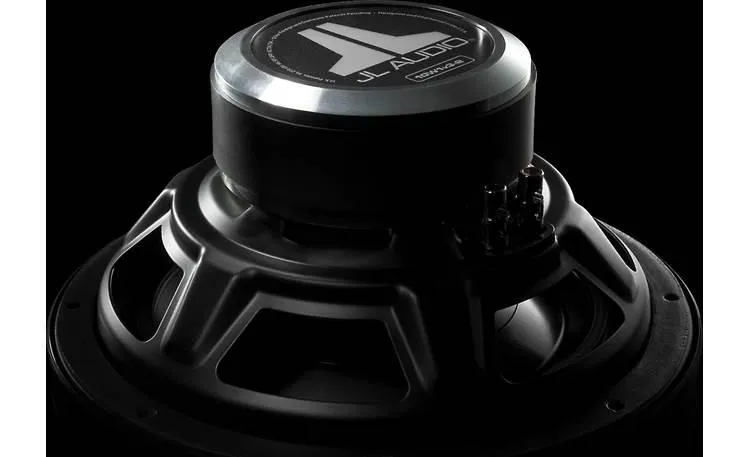

JL Audio 10W1v3-2

Legendary JL Audio engineering

The affordable W1v3 subwoofer incorporates patented features developed by JL Audio for their legendary W7 subs. Special venting keeps the W1v3 sub running cool for trouble-free performance, while extensive research in cone bonding and motor assembly construction keeps its cone movement linear for precise, dependable output. The cone interlocks with the dust cap for superior rigidity, and a sophisticated suspension system keeps internal parts aligned properly when you’re jamming hard.

These subs look as good as they sound.

Solid bass made for compact boxes

The low-profile 10W1v3-2 10″ subwoofer works best in compact enclosures, so you can put quality bass in smaller and hard-to-fit vehicles. It features a polypropylene cone with an embossed JL Audio logo for a look that stands out as much as the sound. The removable, customizable trim ring lets you put a personal touch on your system, and makes optional grille installation a snap. This punchy W1v3 sub works well with moderate power, delivering impressive performance without costing a fortune.

Product highlights:

• 10″ 2-ohm subwoofer
• polypropylene cone with nitrile-butylene rubber surround
• power handling: 75-300 watts RMS
• peak power handling: 600 watts
• frequency response: 25-250 Hz
• sensitivity: 83.9 dB
• top-mount depth: 4-5/8″
• sealed box volume: 0.55 cubic feet
• ported box volume: 0.94 cubic feet
• grille not included
• warranty: 1 year
• 60-day returns
• MFR # 92080
• Item # 13692080

What’s in the box:

If you need assistance accessing this owner’s manual, please give us a call.

• One 10″ Single 2-ohm voice coil subwoofer
• Black plastic trim ring
• Owner’s manual
