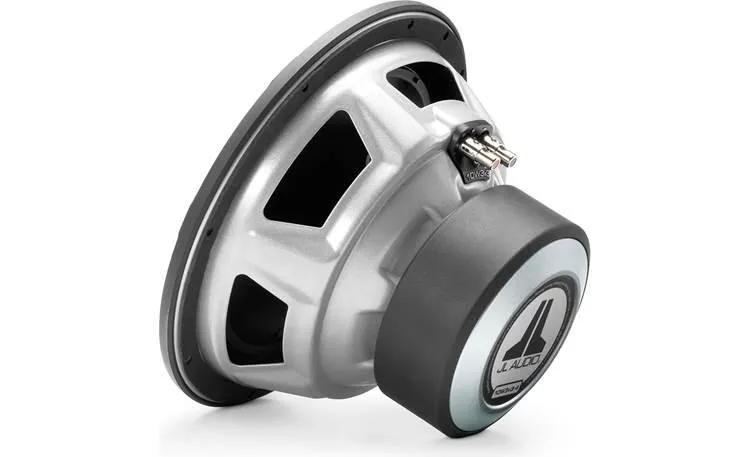

JL Audio 10W3v3-4

Remarkably realistic bass

JL Audio designed their W3v3 subwoofers to deliver powerful, accurate bass with a medium-power amplifier. Their extensive motor assembly research resulted in a design that ensures smooth, precise cone movement at any power level. Exclusive cooling features shunt heat away from the sub’s internal motor structure for long term durability and reduced distortion. The W3v3 sub works well in a sealed or ported enclosure.

Well-rounded performance

The 10W3v3-4 subwoofer boasts a 10″ mineral-filled polypropylene cone with a distinctive metallic JL Audio medallion. A patented design eases the stress felt by the rubber surround during cone movement, for increased reliability and consistent bass output. The removable, customizable trim ring accepts optional JL Audio grilles, and can be painted to enhance your installation.

Product highlights:

• 10″ 4-ohm subwoofer
• mineral-filled polypropylene cone with nitrile-butylene rubber surround
• power range: 100-500 watts RMS
• peak power handling: 1,000 watts
• frequency response: 25-250 Hz
• sensitivity: 84.87 dB
• top-mount depth: 5-7/8″
• sealed box volume: 0.625 cubic feet
• ported box volume: 1.125 cubic feet
• grille not included
• warranty: 1 year
• 60-day returns
• MFR # 92151
• Item # 13610W3V34

What’s in the box:

If you need assistance accessing this owner’s manual, please give us a call.

• One 10″ Subwoofer
• Black plastic trim ring
• Owner’s Manual
