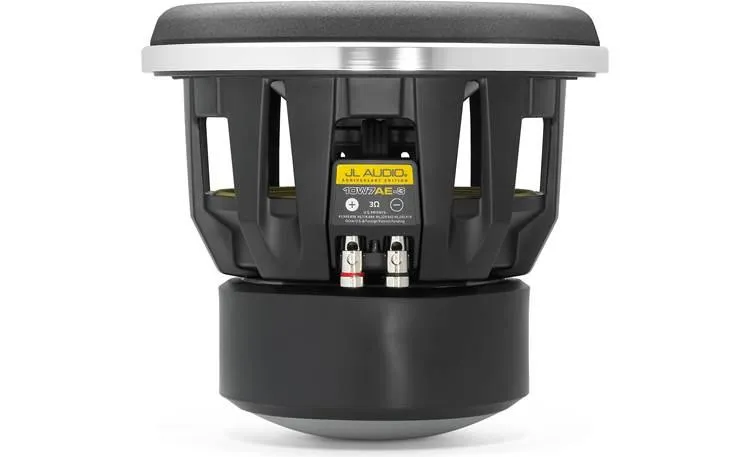

JL Audio 10W7AE-3

Celebrating 10 years of unrivaled bass performance

Ten years ago, JL Audio redefined low-frequency reproduction with their masterful, designed-from-scratch W7 subs. Now, the Anniversary Edition W7 Series 10W7AE-3 10″ subwoofer features the latest refinements to this groundbreaking design, highlighted by a satin-black frame, silvery anodized trim ring, and special anniversary logo.

Profound bass for the music-lover

Each W7 sub is built to meticulous standards at JL Audio’s factory in Miramar, Florida. JL Audio put 30+ years of sonic expertise into their legendary W7 subwoofers, so you can expect smooth, powerful bass that enhances your favorite music.

Innovative design for impressive performance

Six patented technologies help this W7 sub deliver unmatched performance:

W-Cone™: a dish-shaped outer cone is supported by a second W-shaped inner cone attached to the sub’s voice coil structure. This design creates a super-rigid, lightweight cone that responds rapidly for accurate bass without unwanted coloration.

OverRoll™: an innovative mounting method lets the surround wrap around the outside of the mounting flange. This method allows for more useable cone area than conventional surrounds, so this sub moves more air for deeper lows.

Floating Cone Attach Method (FCAM™): precision engineering aligns the voice coil, and woofer cone for incredibly linear woofer movement, which means you’ll hear exceptionally accurate bass.

Plateau-reinforced spider attachment: a collar on the voice coil eases stress on the spider for extended excursion and improved reliability.

Elevated frame cooling and cross-drilled pole-piece: cone movement pumps air through vents in the frame and machined holes in the pole piece. Your voice coils stay cooler, even when you’re pushing your system.

Product highlights:

• 10″ 3-ohm subwoofer
• polypropylene W-Cone with polyester foam surround
• solid cast-alloy basket
• power range: 250-750 watts RMS
• peak power handling: 1500 watts
• frequency response: 20-250 Hz
• sensitivity: 84.3 dB
• top-mount depth: 8-1/16″
• sealed box volume: 1.25 cubic feet
• ported box volume: 1.5 cubic feet
• grille not included
• warranty: 1 year
• 60-day returns
• MFR # 92114
• Item # 13692114

What’s in the box:

• One 10″ Single voice coil subwoofer (attached to an MDF baffle board with 12 Phillips-head screws)
• Owner’s manual
• On-line product registration information
