JL Audio 12W6v3-D4

Bass that means business

JL Audio’s celebrated W6v3 subwoofers deliver knockout low end with incredible accuracy. The 12W6v3-D4 12″ subwoofer uses a tough, mineral-filled polypropylene cone that offers incredible strength without the added bulk that can slow woofer response. JL Audio conducted extensive research to develop a motor structure that operates efficiently and precisely, so this sub can deliver powerful, reliable bass while handling up to 600 watts RMS. Exclusive cone-bonding assemblies, advanced cooling systems, and a highly stable spider attachment enhance reliability and promote long performance life.

Precision-crafted low end

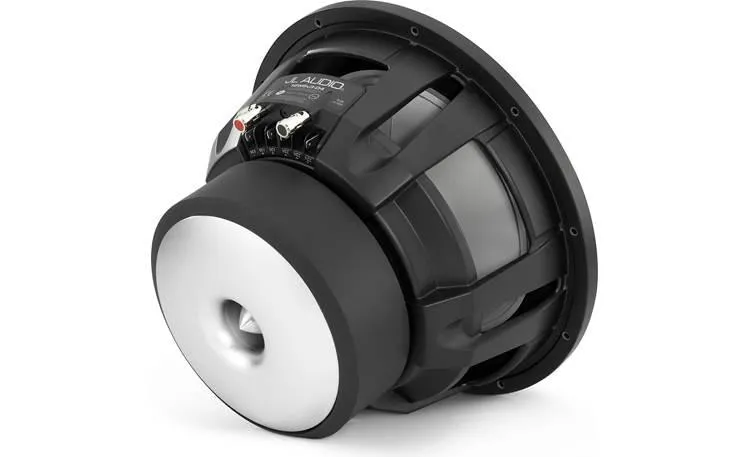

The sub’s solid cast-alloy basket allows your W6v3 sub to handle big-time power without any distortion-causing flexing. A sophisticated suspension system promotes linear cone movement for greater accuracy. The simple terminal jumper wiring system allows you to set the subwoofer’s impedance to draw maximum power from your amplifier, or to design a multi-sub setup.

Get the sound and look you want

The elegant JL Audio medallion on the front shows the competition you mean business. Go for a special look with the removable black trim ring, which can be painted to match your installation theme. The 12W6v3-D4 works best in a compact enclosure, so you can get great bass in some tight places.

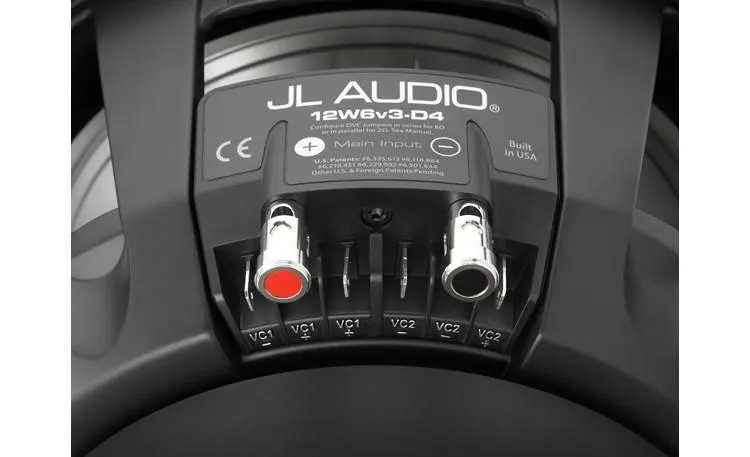

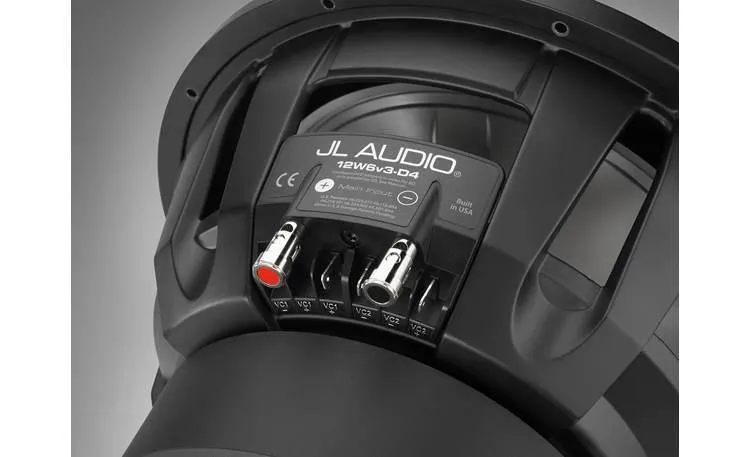

The terminal jumper system lets you easily adjust the sub’s impedance.

Product highlights:

• 12″ subwoofer with dual 4-ohm voice coils
• mineral-filled polypropylene cone with rubber surround
• satin black cast-alloy basket
• power range: 200-600 watts RMS
• peak power handling: 1200 watts
• frequency response: 20-200 Hz
• sensitivity: 85.4 dB
• top-mount depth: 7-9/16″
• sealed box volume: 1.0 cubic feet
• ported box volume: 1.30 cubic feet
• grille not included
• warranty: 1 year
• 60-day returns
• MFR # 92141
• Item # 13612W6V3

What’s in the box:

If you need assistance accessing this owner’s manual, please give us a call.

• One 12″ Dual 4-ohm voice coil subwoofer
• 2 Voice coil jumper wires (installed)
• Black plastic trim ring (installed)
• Owner’s manual
• Voice coil connection warning
