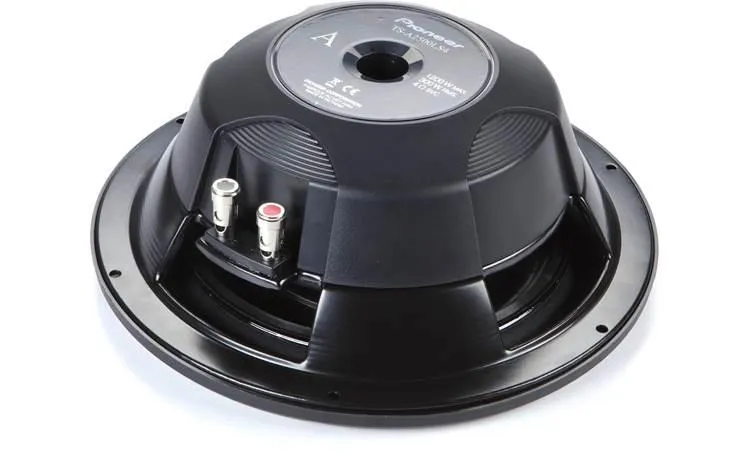

Pioneer TS-A3000LS4

A shallow-mount sub that rocks

Pioneer’s TS Series shallow-mount subs bring great bass to vehicles where conventional subs won’t fit. Their low profile allows the use of slender enclosures that’ll fit behind a truck seat or in any tight space while delivering the bass performance you need. The TS-A3000LS4 12″ shallow-mount sub handles up to 400 watts with a mounting depth of just 3-1/2″.

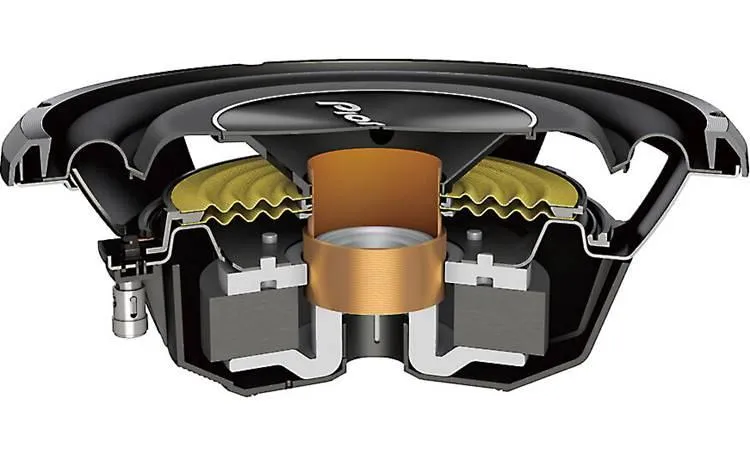

The TS-A3000LS4 features an oversized, injected polypropylene cone that moves more air and delivers accurate bass. The sub works best in a small sealed enclosure, making it ideal for fitting those tight spaces in today’s smaller vehicles.

Product highlights:

• 12″ 4-ohm shallow subwoofer
• injected polypropylene cone with rubber surround
• power handling: 400 watts RMS (1,500 watts peak)
• frequency response: 20-1,000 Hz
• sensitivity: 88 dB
• mounting depth: 3-1/2″
• cutout diameter: 10-15/16″
• sealed box volume: 0.5-1.0 cubic feet
• ported box volume: 0.65-1.0 cubic feet
• grille not included
• warranty: 1 year
• 60-day returns
• MFR # TS-A3000LS4
• Item # 130TSA30LS

What’s in the box:

• One 12″ Subwoofer
• Trim ring
• Eight 1-1/8″ Screws
• Adhesive backed foam gasket
• Manual (English/ German/ French/ Spanish/ Portuguese/ Italian/ Russian)
• Warranty information
• Enclosure recommendations printed on the box
