High performance, high resolution

Alpine designed their Status Series of car audio components to deliver high-resolution sound in the automotive environment. Their HDZ subwoofers extend this level of quality by using technology developed for Alpine's premium F#1 Status Series car speakers. Now you can enjoy home system-quality sound in your home away from home.

Built to deliver

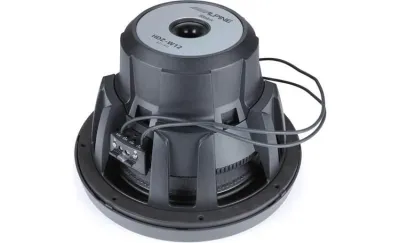

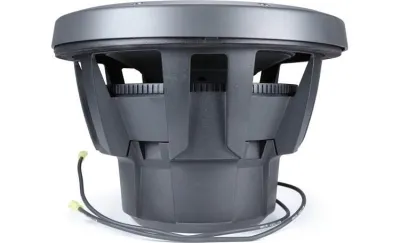

The HDZ-W12 starts with a solid cast aluminum frame that supports the cone and motor for greater clarity and minimal distortion. The pulp/mica cone combines accuracy and warmth, and the proprietary High-Amplitude Multi-Roll (HAMR) surround and dual progressive spiders deliver the precise low end needed for hi-res sound. A carbon-fiber dust cap protects the 2-1/2" voice coil, and the included mesh grille and aluminum trim ring complete the package, offering both protection and good looks.

Power and flexibility

This HDZ-W12 subwoofer is designed to handle a whopping 800 watts of RMS power handling (2400 watts peak) so you'll get all the bass you're looking for and more. Its dual 4-ohm voice coils give you plenty of system configuration options, so you can build a Status Series system that's right for you. Whether as part of a full Status Series system or as an addition to your current system, you'll get supreme accuracy and full, solid high-fidelity performance.

Product highlights:

• 12" Status Series subwoofer with dual 4-ohm voice coils

• pulp/mica cone with carbon-fiber dust cap

• High-Amplitude Multi-Roll (HAMR) rubber surround

• cast aluminum frame

• frequency response: 26-200 Hz

• power handling: 800 watts RMS (400 watts per coil)

• peak power handling: 2400 watts

• sensitivity: 83.7 dB

• top-mount depth: 7.35"

• cutout diameter: 11"

• sealed box volume: 0.87-2.12 cu. ft.

• ported box volume: 1.12-2.12 cu. ft.

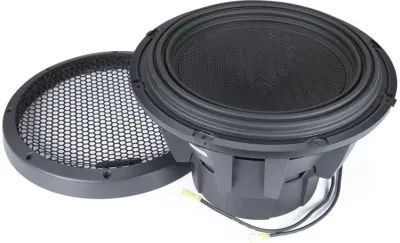

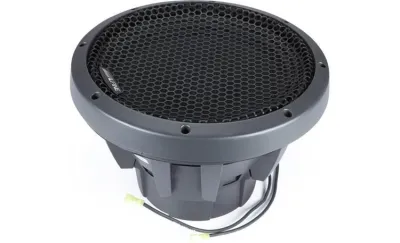

• mesh grille and aluminum trim ring included

• warranty: 1 year

• 60-day returns

• MFR # HDZ-W12

• Item # 500HDZW12

What's in the box:

Alpine HDZ-W12 owner's manual

If you need assistance accessing this owner's manual, please give us a call.

• One 12" Dual 4-ohm voice coil subwoofer

• Grille

• Aluminum trim ring

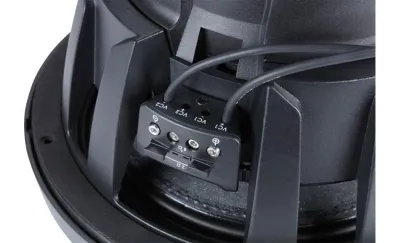

• Two voice coil jumpers (installed)

• 3mm Hex key

• Application guide (English/ French)

• On-line product registration information

• Warranty information (English/ French)

• Important Notice (English/ French)
