Alpine's biggest screen is now better than ever

When you want to go big, Alpine takes you there. Their iLX-F511 Halo11 digital media receiver boasts an 11" floating touch display, yet fits in most single-DIN (2" tall) dash openings, with plenty of adjustability to ensure you get a great viewing angle and access to your climate controls. The screen boasts a higher resolution to complement your favorite media sources, plus improved responsiveness for speedy delivery of information and images. You'll enjoy top-notch smartphone integration along with compatibility with the iDatalink Maestro module so you can keep your cherished factory features.

An 11" screen with a 2" chassis

The iLX-F511 comes in two pieces: a 2" tall chassis and an 11" floating touchscreen display. The chassis fits in most single-DIN dash openings, and since there's no disc player, the mounting depth shouldn't be an issue for most vehicles. Once you've mounted the chassis in your dash opening, you can choose from five available vertical mounting positions and two separate depths for the screen, giving you the flexibility to position the radio without blocking essential dash climate controls. Even if your vents are partially blocked, Alpine designed the radio to function under typical in-vehicle temperatures.

Check your dash!

Important Note — The screen measures 10.585" x 6.995". Before ordering, check for possible interference with your dash, your shifter, and all other controls.

Optimize your view

Once you've determined the best vertical position for the display, you also have the option of changing the screen viewing angle up to 45 degrees forward or 20 degrees backward. This allows you to accommodate for angled dashes or just get a better look at your iLX-F511's display. A pressure-tilt mechanism gives you a high degree of flexibility for finding the perfect spot. After you've chosen the best positions, four screws hold the display firmly in place.

A display that pops with clarity

We live in an 8K world now, so there's no reason your stereo's screen can't look a little better. Alpine gave this display a resolution of 1280 x 720 pixels, so your album artwork and other information will be clear and focused. When you're parked and checking out some video, the iLX-F511 can act as a drive-in theater — just bring your own popcorn.

Take your tunes for a drive

Even without a disc player, the iLX-F511 offers lots of ways to enjoy your media. Dual rear USB inputs let you attach your smartphone or a thumb drive with your favorite music or video files. The rear HDMI connection allows you to hook up to an optional CD/DVD or Blu-Ray player. An auxiliary input lets you bring in audio from another source, such as an old-school portable disc player.

Camera connectivity

Rear-view camera owners will appreciate the included camera inputs and distance guidance display. The inputs work with Alpine's advanced HD dash cam/rear-view cam combo for all-over coverage of your vehicle. And if you'd like to add Alpine's optional HCE-C2100RD multi-view camera, you'll need this 2-camera switcher (not included) as well. The camera inputs are compatible with Alpine cameras only; Alpine includes one composite video adapter for connecting a non-Alpine camera.

Works with both wired and wireless Android Auto and Apple CarPlay

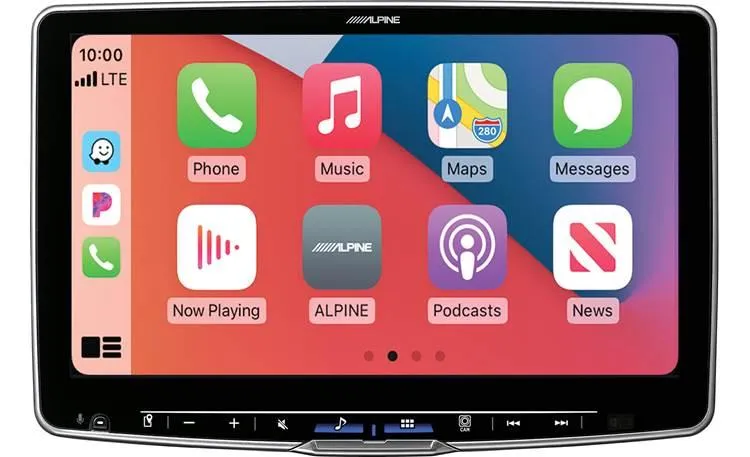

The iLX-F511's compatible with both Apple CarPlay and Android Auto, so you and your passengers can enjoy messaging, mapping, tune selection, and much more from your smartphone without touching any screens. Both platforms work with voice commands, which you can activate by speaking a keyword or pressing the dedicated "Voice" button on the stereo's bezel. You can get stuff done without being distracted by your phone, and you can use either platform with your phone plugged in or wirelessly. Get more info at www.apple.com/ios/carplay and www.android.com/auto.

Bluetooth® for hands-free streaming and calling

The iLX-F511 continues Alpine's long relationship with Bluetooth connectivity. Use it to make or receive hands-free phone calls via your smartphone with the included microphone, or stream music from your phone with ease. You can also use the included microphone to activate voice commands for Apple CarPlay and Android Auto.

Customize your home screen

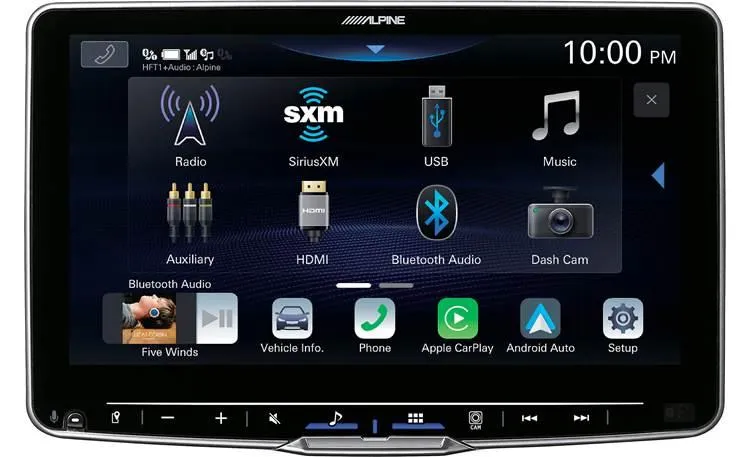

Along the bottom of the iLX-F511's bezel you'll find some helpful buttons, including a dedicated microphone button to activate voice controls for CarPlay and Android Auto. You can also customize your home screen with up to 3 pages of functions that you want to access — choose among 22 different offerings, including a clock and your various audio sources. You can even upload a photo from a thumb drive to serve as your wallpaper on the bountiful 11" display.

Turn up the radio

The iLX-F511 boasts excellent entertainment choices up and down the dial:

HD Radio™ reception: Enjoy crystal-clear sound quality from participating AM and FM stations, including FM that sounds almost as good as a CD. Plus, you'll see station and song info on the screen.
Satellite radio compatibility: You can add SiriusXM programming to the receiver with an optional tuner and a subscription.

Got streaming?

When your smartphone is connected, this Alpine's ready to roll with your favorite streaming services. Pull up playlists, albums, and more with ease, and check out the information on the iLX-F511's gorgeous display. Tidal users will have full array of the service's high-res audio offerings at their disposal, with a custom app interface right on the radio's display. You can explore it all when you're connected to a wi-fi hotspot, and some Tidal features may require a subscription.

Sonic upgrades all around

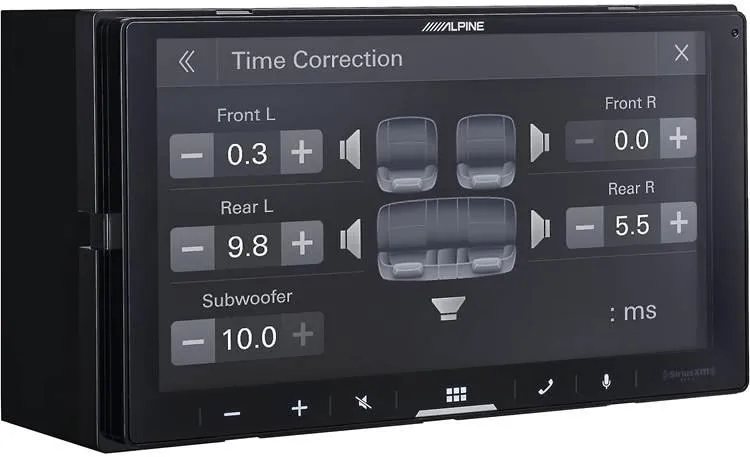

The iLX-F511's not only a pretty face, it also boasts plenty of ways to keep your ears happy. You can use its many fingertip-friendly controls to set the EQ — this Alpine offers both Basic and Advanced tuning options, with 13-band parametric adjustments, time correction, and much more. And it works with lossless FLAC files to give you the thrilling digital media experience you crave. You'll be sure to hear the results thanks to Alpine's commitment to using high-quality audio components, such as a full-digital power integrated circuit and custom capacitors to keep the signal strong, clean, and free of noise.

iDatalink Maestro lets you keep your factory extras

This Alpine offers compatibility you won't find in many other aftermarket radios, thanks to the iDatalink Maestro module (not included). In a wide selection of vehicles, this module lets you keep factory features that you'd otherwise lose when you install a new radio. You'll also be able to check out engine performance data and other vehicle data on the Alpine's screen. Once you've identified your vehicle, you'll see the iDatalink module offered on the way to your Shopping Cart if it's compatible.

Add a wireless volume knob

Our customers are often very loud and clear about how much they miss volume knobs on today's stereos, especially the ones with touchscreens. Alpine's RUX-H02 Halo wireless level controller (sold separately) lets you mount a convenient knob nearly anywhere you like, thanks to its Bluetooth connectivity. You can add a rotary volume knob and subwoofer level controller without running additional wires, for the ultimate in mounting flexibility. Turn up the sound, the old-school way!

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

Smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

You'll need a wired connection to your parking brake to access settings and other features on this receiver. Your parking brake must be connected and set in order to view video on its screen.

General features:

digital multimedia receiver with AM/FM tuner (does not play discs)
11" hi-res capacitive touchscreen with adjustable vertical mounting positions and viewing angles
high-resolution (1280x720 pixels) display
fits single-DIN dash openings
HD Radio tuner built-in
Bluetooth hands-free calling and audio streaming (external microphone included)

Smartphone features (see Details for info on compatibility with specific smartphones and apps):

Apple CarPlay compatible (wired and wireless)
Android Auto compatible (wired and wireless)
built-in iPod, iPhone, and iPad control
playback and control of music files on compatible Android devices
Pandora and Spotify control with iPhone and Android
full Tidal integration with custom display (requires a wi-fi connection and Tidal smartphone app)

Audio/video features:

plays MP3, WMA, AAC, APE, and FLAC music files (see Details tab for full capabilities)
plays AVC, FLV, H,264, MP4, MPEG-4, and MOV video files
plays lossless FLAC audio files up to 96kHz/24-bit
24-bit digital-to-analog converter (DAC)
13-band parametric equalizer (Basic and Advanced options)
6-channel time correction
high- and low-pass filters
Bass Engine SQ
MediaXpander HD

Expandability:

works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
compatible with optional Halo wireless level controller
compatible with optional 2-camera switcher
compatible with optional HD dash cam with rear-view camera
inputs: 2 rear USB ports; rear HDMI input; rear auxiliary input; 2 proprietary camera inputs (one composite video adapter is included for non-Alpine cameras)
outputs: HDMI output; 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other information:

Important Note — Monitor dimensions are 10.585" x 6.995". Before ordering, check for possible interference with your dash.
wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
built-in internal amp (16 watts RMS CTA-2006/50 peak x 4 channels)
compatible with most factory steering wheel audio controls (adapter required)
CTA-2006 compliant
compatible with iDatalink Maestro
- retains factory features in a wide selection of vehicles
- displays engine performance data on touchscreen
warranty: 1 year
60-day returns
MFR # ILX-F511
Item # 500ILXF511

What's in the box:

11" Touchscreen monitor
Source unit
Wiring harness (15A fuse)
Preout harness
iDatalink/Driver Recorder/Front Camera harness
Camera input adapter harness
Mic/SWC harness
Microphone (w/ attached 12.5' cable terminated by a right-angle stereo-3.5mm connector)
Surface-mount bracket
Two-sided tape
GPS antenna (attached 8' cable with proprietary connector)
Self-adhesive mounting pad
3 Self-adhesive cable clamps
Power-plate
2 Rear covers
HDMI connector clamp
4 Pan-head ISO-screws (M5x8mm)
4 Counter-sunk ISO-screws (M5x8mm)
3 Display screws (M5x8mm)
2 Hinge screws (M3x4mm)
2 Rear cover screws (M2.6x6mm)
4 Rectangle self-adhesive sheets
4 Square self-adhesive sheets
2 Round self-adhesive sheets
2 Semi-oval self-adhesive sheets
Quick Reference Guide
Online Registration Information
Online Detailed Manual Card
